TILLSO SABRE TINE PARTS

EXCLUSIVE UK DISTRIBUTOR FOR TILLSO PARTS

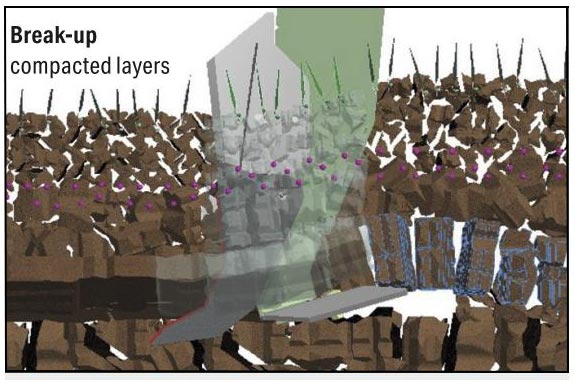

TARGETED RESTRUCTURING WITH MINIMUM SURFACE DISTURBANCE

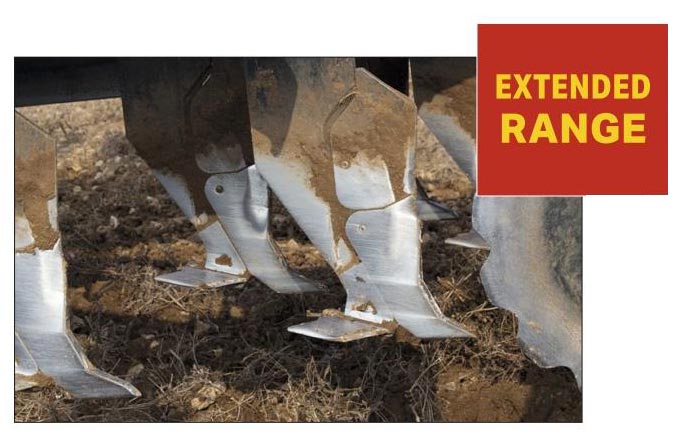

Sabre Tines create a precise and permanent action, removing compacted layers, preserving organic matter and leaving weed seeds on the surface. Sabre Tines can be retro-fitted to update a wide range of machines. Patented technology effectively restructures soil across the full width with minimum surface disturbance.

  • Preserves organic matter in soil.
  • Weeds seeds and fine particles kept on surface.
  • Excess water drains easily, minimising the risk of run-off, as well as nutrient and herbicide loss.
  • Even soil density throughout main rooting zone promotes healthy root development.
  • Surface is left suitable for direct drilling.

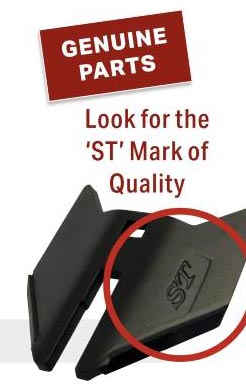

GENUINE REPLACEMENT PARTS SUPPLIED BY SPALDINGS to fit:

– SABRE ULTRALITE TINES
– SABRE LITE TINES
– SABRE MONO TINES
– SABRE MAX TINES

THE SABRE RANGE

All tines use the same point and shin. The different wing assemblies are appropriate to different soil types and to achieve the correct proportions between working depth and tine spacing.

Sabre points are protected with five carbide tiles and the different wing options come with carbide protection (tile or coating options) to ensure they are working efficiently throughout and to prolong the wear life.

WELD-ON HALF LEGS – RETRO-FITTING

Sabre weld-on half legs can be retro-fitted to most subsoiler and disc/tine cultivator machines. Each half leg is supplied with comprehensive instructions to ensure correct fitment is achieved for individual machines. Alternatively, Spaldings offer a special order service, for leg conversions from our existing range of sub-surface legs, please ask for details.

BENEFIT FROM:

  • Improved weed control Reduced fuel costs
  • Soil conservation
  • Minimum disturbance

SABRE TINE APPLICATION

TINE TINE SPACING WORKINIG DEPTH WING ASSEMBLY APPLICATION
SABRE ULTRALITE 400-500mm 150-250mm 3 Wing Options, Single Fixing Wing Shallow compaction OSR seeding
SABRE LITE 500-600mm 225-300mm Interchangeable Frog, Narrow Wings OSR seeding disc/tine cultivators
SABRE MONO 580-700mm 225-400mm Single Fixing Wing Brash, mixed or stony soils
SABRE MAX 650-800mm 225-450mm Interchangeable Frog, Slatted Wings Deep subsoiling clay soils

Spaldings parts are designed and manufactured for Spaldings to exacting quality standards and are supplied to fit machines indicated and are not sold as genuine parts. SPALDINGS ARE THE EXCLUSIVE UK DISTRIBUTOR FOR TILLSO PARTS – GENUINE TILLSO REPLACEMENT PARTS
